1/10 GS02F KOMODO double cab TS Kit
by Gmade
Sold out
Original price
$387.99
-
Original price
$387.99
Original price
$387.99
$387.99
-
$387.99
Current price
$387.99
GS02F features a high strength steel C-channel frame designed for a scale look, with hex wrench bolted cross members, which make it resistant to twisting or wrapping. Steel parts are black powder coated to prevent rust.The inner fender is directly fixed to the frame to reduce flex and in the chassis and parts, which also prevents objects from entering into the chassis during driving.
GS02F's weight balance is biased to the forward of the chassis.This increases traction to the front wheels, providing better crawling on steep angles, and minimizing roll-overs when climbing.
The motor mount accepts 540 or 550 size motor with cooling fan with option.
The GS02F steering servo is mounted on the frame, just like a 1:1 truck. It is designed for zero bump steer to maximize steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.
The front and rear drivelines are arranged in a straight-line to reduce stress on the universal shaft and improve efficiency.
The GS02F transmission is designed with overdrive to rotate the front wheels faster than the rear. Vehicles with overdrive on the front axle have an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on rough surfaces. It is also equiped with a 2-speed, with 1st gear being for hardcore rock crawling, and 2nd gear for hill climbing or high-speed driving.
GS02F transmission is designed with counter-rotating shafts to compensate for rotational forces due to torque, increasing the truck's stability.
GA44 axles are designed with the hardcore rock crawler in mind. Made of high-strength meterials, they will look and perform like a real 1:1 vehicle. The GA44 axle housing is a durable one-piece type, and the angle of the differential cover is designed to reduce the risk of damage due to frontal impact.

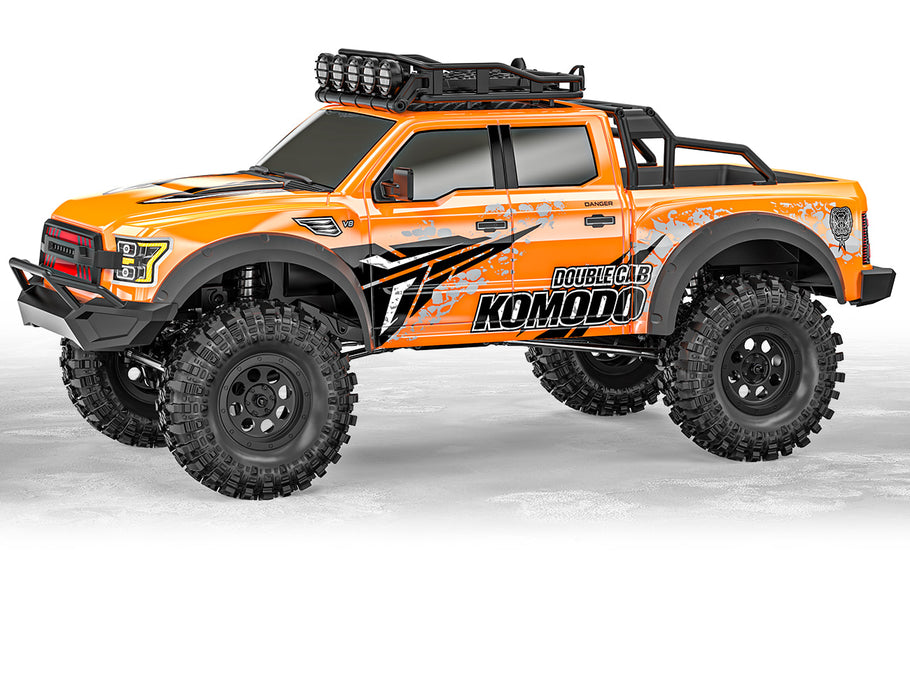

The Komodo Double Cab body is made of 1.5mm thick high quality clear polycarbonate with strong and stylish details. It includes a grille, light bucket, side mirror, wiper grille, and bumper and roll bars that add detail, allowing you to tune to the look of a real off-road truck. Accessory parts are made of high-strength plastic, and are extremely strong. Includes decals with realistic details.
Hidden body mounts eliminate unnecessary holes in the body, increasing the realistic look of the vehicle.
Width : 230mm
Height : 245mm
Height(with out roof rack) : 213mm
Length : 525mm
Wheel base : 313mm
Ground clearance : 69mm
Weight (no electronics) : 2.08kg
Requires additional equipment, paint, and assembly. Shown assembled and painted for display purposes only.
Chassis mounted servo 2 speed transmission Transmission overdrive Hidden body mounts Counter-rotating drivetrain 1.9" wheel/tire combo
GS02F's weight balance is biased to the forward of the chassis.This increases traction to the front wheels, providing better crawling on steep angles, and minimizing roll-overs when climbing.
The motor mount accepts 540 or 550 size motor with cooling fan with option.
The GS02F steering servo is mounted on the frame, just like a 1:1 truck. It is designed for zero bump steer to maximize steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.
The front and rear drivelines are arranged in a straight-line to reduce stress on the universal shaft and improve efficiency.
The GS02F transmission is designed with overdrive to rotate the front wheels faster than the rear. Vehicles with overdrive on the front axle have an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on rough surfaces. It is also equiped with a 2-speed, with 1st gear being for hardcore rock crawling, and 2nd gear for hill climbing or high-speed driving.
GS02F transmission is designed with counter-rotating shafts to compensate for rotational forces due to torque, increasing the truck's stability.
GA44 axles are designed with the hardcore rock crawler in mind. Made of high-strength meterials, they will look and perform like a real 1:1 vehicle. The GA44 axle housing is a durable one-piece type, and the angle of the differential cover is designed to reduce the risk of damage due to frontal impact.
The Komodo Double Cab body is made of 1.5mm thick high quality clear polycarbonate with strong and stylish details. It includes a grille, light bucket, side mirror, wiper grille, and bumper and roll bars that add detail, allowing you to tune to the look of a real off-road truck. Accessory parts are made of high-strength plastic, and are extremely strong. Includes decals with realistic details.
Hidden body mounts eliminate unnecessary holes in the body, increasing the realistic look of the vehicle.
Width : 230mm
Height : 245mm
Height(with out roof rack) : 213mm
Length : 525mm
Wheel base : 313mm
Ground clearance : 69mm
Weight (no electronics) : 2.08kg
Requires additional equipment, paint, and assembly. Shown assembled and painted for display purposes only.
